 working height:
|
10.15 m |
 capacity:
|
565 kg |
 platform size:
|
(3.7m) 2.45m x 1.45m |
 platform height:
|
8.28 m |
|
dimensions:
|
3.17m x 1.78m x 2.44m (1.59m) |
 weight:
|
3520 kg |
 brand:
|
Haulotte |
 model:
|
Compact 10DX |
 engine:
|
Diesel |
 item designation:
|
SB-101D |
Advantages:

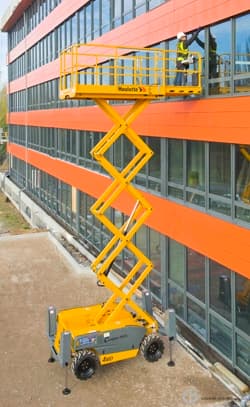

This scissor lift from Haulotte is designed for off-road use. Nevertheless, the working platform can be used indoors. It also scores points with its high carrying capacity. The maximum lifting height is 10 metres.
The Compact 10DX lift has a maximum carrying weight of 565 kg. This maximum capacity should not be exceeded, otherwise unintentional damage to the machine may occur.
| Weight | 3,520 kg |
|---|---|
| subgroup | |
| main group | |
| min platform depth | 1.45 |
| side | |
| platform length | 2.45 |
| platform length extended | 3.7 |
| max platform depth | 1.45 |
| min width | 1.78 |
| max height | 2.44 |
| min length | 3.17 |
| max width | 1.78 |
| transportation height | 1.59 |
| max length | 3.17 |
| model | |
| brand | |
| engine | |
| working height | |
| platform height | |
| capacity | |
| platform size | |
| dimensions | |
| weight | |
| item designation | SB-101D |

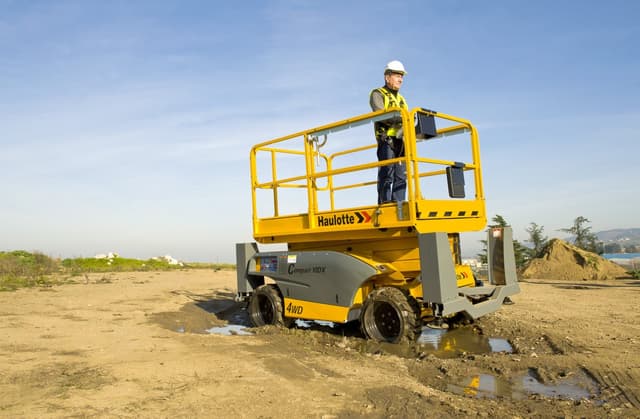

The access platform has an all-wheel drive system for excellent performance off-road and on poor surfaces. The scissor lift also has a ground clearance of 28 cm. The work platform also has a small turning radius for greater mobility.

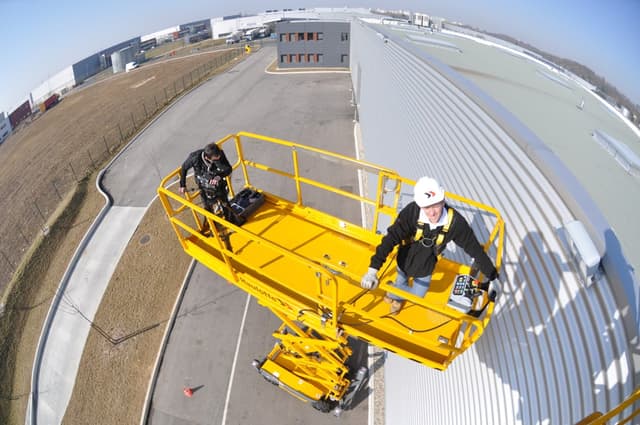

The Compact 10DX lifting platform also has a 3.6 m2 platform, which means that the platform can be used by several people at the same time.
An integrated diagnostics system for fast troubleshooting is also on board. This guarantees you more productivity. In general, this work platform has a user-friendly system.
Are you interested in the Compact 10DX lifting platform? We would be happy to discuss the job with you and prepare a customised quote. You too can use this excellent lifting platform from Haulotte on site at your premises.
|
working height:
|
22.5 m |
|
capacity:
|
450 kg |
|
platform size:
|
(5.48m) 3.98m x 1.19m |
|
engine:
|
electric |
|
lifting height:
|
4.3 m |
 lateral reach:
|
2.62 m |
|
capacity:
|
1.250 kg |
|
dimensions:
|
3.47m x 1.49m x 1.92m |
|
engine:
|
Diesel |
|
lifting height:
|
21.8 m |
|
lateral reach:
|
18.20 m |
|
capacity:
|
6000 kg |
|
dimensions:
|
6.97m x 2.50m x 3.10m |
|
engine:
|
Diesel |
|
lifting height:
|
24.8 m |
|
lateral reach:
|
20.50 m |
|
capacity:
|
7000 kg |
|
dimensions:
|
7.67m x 2.50m x 3.10m |
|
engine:
|
Diesel |
