TB-218 | Genie S-65

working height: 21.8 m
capacity: 227 kg
lateral reach: 17.10 m
platform height: 19.8 m
dimensions: 9.42m (7.60m) x 2.49m x 2.72m
weight: 10449 kg
engine: Diesel
brand: Genie
model: S-65
item designation: TB-218

Add to quote!

Contact us if you have any questions or are interested in a rental offer.

Rental period approx.

Location

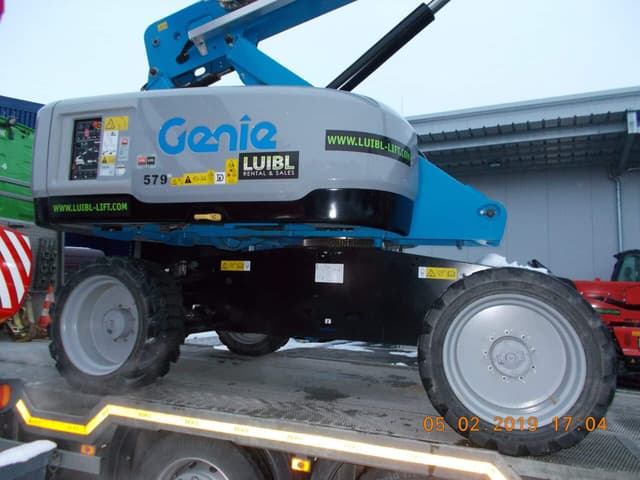

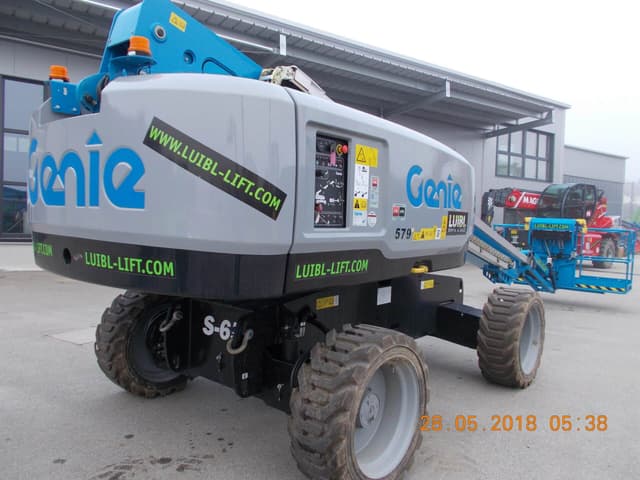

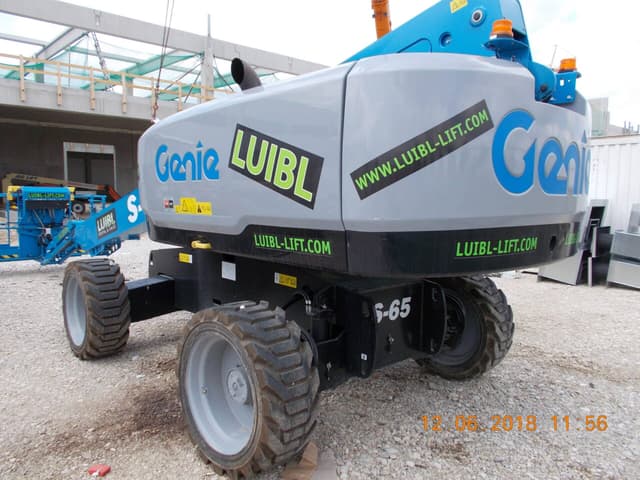

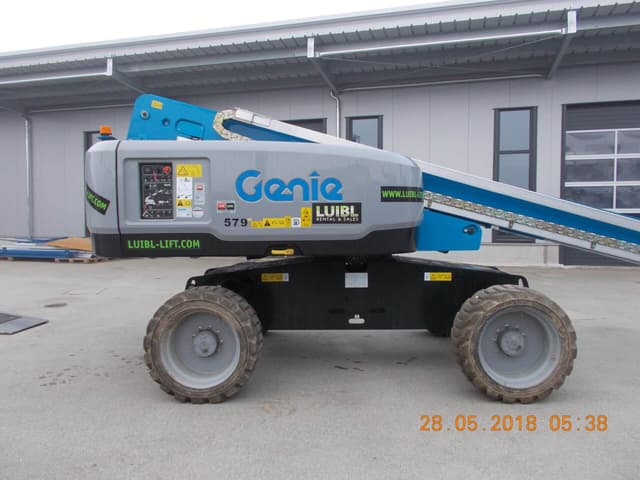

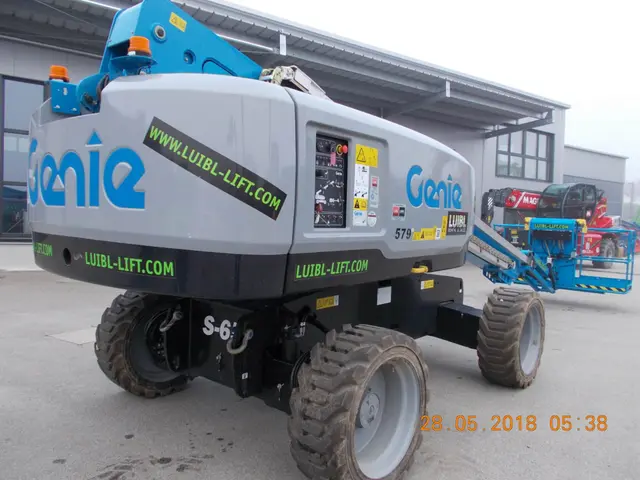

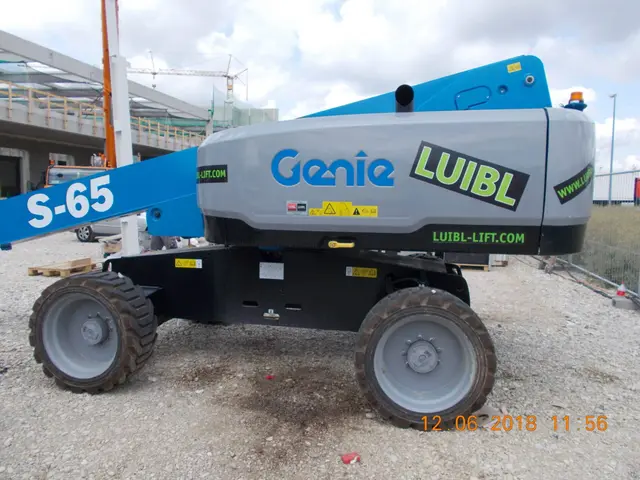

Telescopic platform 22m Genie S-65

This telescopic work platform from Genie is equipped with a diesel drive. This enables the use of the stage in the interior. The telescopic working platform can only be used outdoors. It is also very flexible, thanks to its innovative joint system, and can manoeuvre easily in tight places. The maximum lifting height is 22 metres. The telescopic riser has a maximum carrying weight of 227 kg. This maximum capacity should not be exceeded, otherwise unintentional damage to the machine may occur. Hire a telescopic platform now too.

Weight 10,449 kg
main group

subgroup

side

min width

2.49
transportation height

2.72
platform length extended

2.44
max length

9.42
max platform depth

1.83
max width

2.49
min platform depth

0.91
platform length

2.44
max height

2.72
min length

7.60
model

brand

engine

working height

platform height

capacity

lateral reach

platform size

dimensions

weight

item designation

TB-218

Product datasheet

genie_s65

Hire the Genie telescopic platform with around 22 metres

The telescopic working platform can travel on gradients of up to 45%. Permanently active oscillating axle system and traction control for outstanding off-road capability. Hiring such a diesel-powered telescopic boom lift is very simple and reliable. In addition, the S-65 has a very spacious platform for its size, making it possible for up to 2 people to walk on it at the same time. Zero load calibration on site and integrated diagnostics system for better service. The built-in diesel engine has a disproportionate amount of power for its size. This makes the platform very all-terrain. Rent a lift now and save time. The telescopic work platform is able to swivel up to 160° degrees. The telescopic boom lift is perfect for small jobs at medium heights. Chassis tilt sensor extends access to hard-to-reach locations. The patented chain design consists of four independent chain triangles that can adjust up and down by 20° to the ground to ensure a smooth ride. The telescopic work platform also has a highly visible yellow colour.

We offer you top customer service

Are you interested in the S-65? We would be happy to discuss the job with you and prepare a customised quote. You too can use these excellent telescopic risers from Genie on site at your premises. Our rental shop is looking forward to meeting you!
