GTE-109 | Genie Z30/20 N RJ

working height: 10.89 m
capacity: 227 kg
lateral reach: 6.25 m
platform height: 8.89 m
dimensions: 5.31m x 1.19m x 2.00m
weight: 6450 kg
brand: Genie
model: Z30/20 N RJ
engine: electric
item designation: GTE-109

Add to quote!

Contact us if you have any questions or are interested in a rental offer.

Rental period approx.

Location

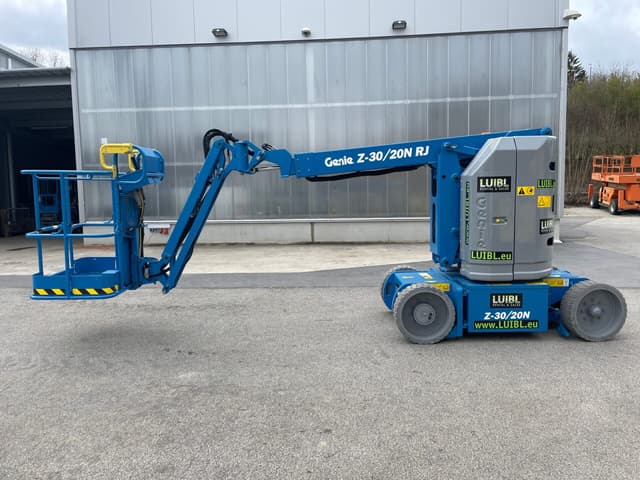

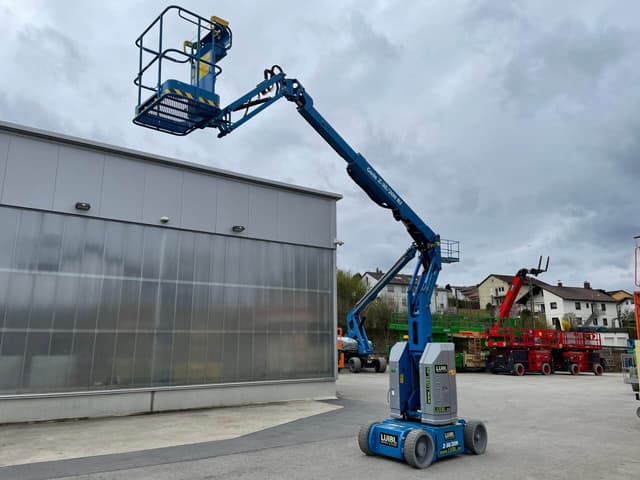

Articulated telescopic boom 10m Z30/20 N RJ

This articulated telescopic boom lift from Genie is equipped with an electric drive. This enables the use of the stage in the interior. The articulated work platforms can be used both indoors and outdoors. In addition, due to its lightweight construction, it is very flexible and can easily manoeuvre in tight places. The maximum lifting height is 10 metres. Articulated platform has a maximum carrying weight of 227 kg. This maximum capacity should not be exceeded, otherwise unintentional damage to the machine may occur. Rent an articulated work platform now. In addition, the articulated lift has a highly visible blue colour. The articulated boom lift is perfect for small jobs at medium heights.

Weight 6,450 kg
main group

side

min platform depth

0.76
platform length

1.17
max platform depth

0.76
platform length extended

1.17
transportation height

2.00
max width

1.19
max length

5.31
min length

5.31
min width

1.19
max height

2.00
model

brand

engine

working height

platform height

lateral reach

capacity

platform size

dimensions

weight

item designation

GTE-109

Product datasheet

genie_z30_20n_rj

Hire the Genie articulated work platform with around 11 metres

The articulated work platform can travel on gradients of up to 35%. A permanently active oscillating axle system increases traction on rough terrain. The hire of such an electrically powered articulated telescopic boom lift is very simple and reliable. In addition, the Z-45 XC has a very spacious platform for its size, making it possible for up to 2 people to walk on it at the same time. The built-in electric motor has a disproportionate amount of power for its size. This makes the articulated platform very all-terrain. The articulated climber also has tyres with an off-road tread for particularly good grip, even on poor surfaces. Rent an electric articulated platform now and save time. The articulated lift is able to swivel the basket up to 135°. This enables them to reach even the most uncomfortable positions.

You can rely on our excellent hire service

Are you interested in the articulated platform Z30/20 N RJ? We would be happy to discuss the job with you and prepare a customised quote. You too can use this excellent lifting platform from Genie on site at your premises. Our rental shop is looking forward to meeting you!
