 working height:
|
15.11 m |
 capacity:
|
565 kg |
 platform size:
|
(6,21m) 3,81m x 2,18m |
 platform height:
|
13.11 m |
|
dimensions:
|
4.75m x 2.39m x 2.19m |
 weight:
|
7055 kg |
 brand:
|
JLG |
 model:
|
4394RT |
 engine:
|
Diesel |
 item designation:
|
SBD-151 |
Advantages:

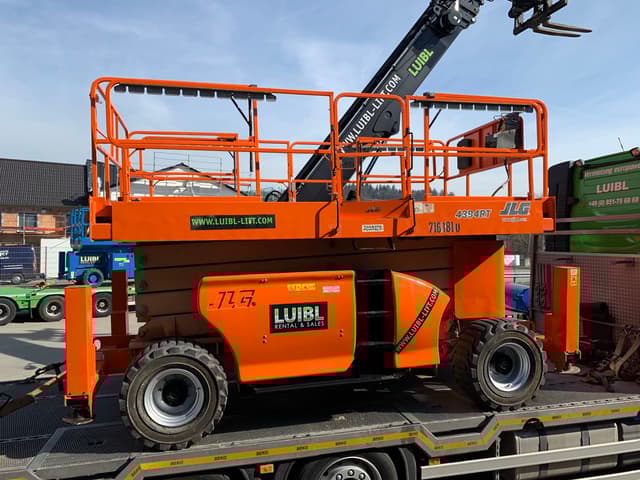

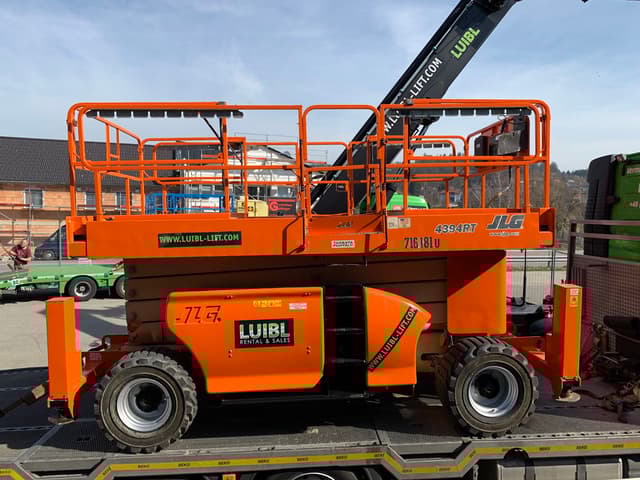

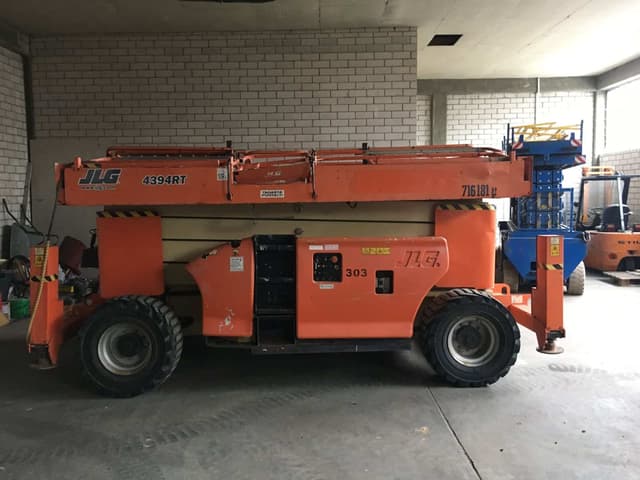

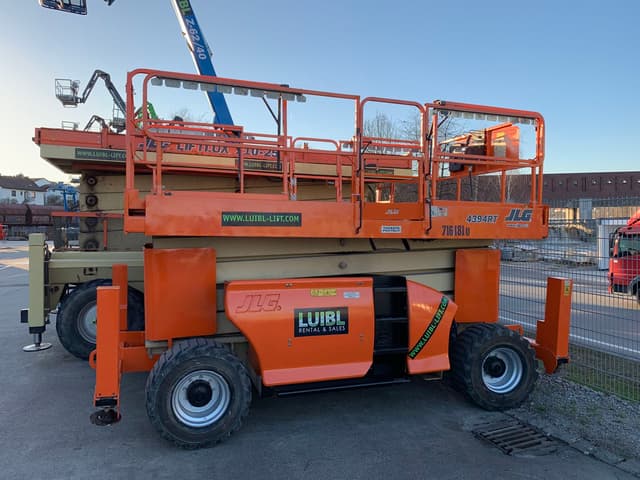

Scissor Lift 15m Diesel JLG 4394RT
A very efficient scissor lift with excellent performance, made for your construction site. Successful work, especially in difficult terrain, is no problem with the JLG 4394RT. The maximum lifting height is 15 metres.
The 4394RT lift has a maximum carrying weight of 565 kg. This maximum capacity should not be exceeded, otherwise unintentional damage to the machine may occur.
| Weight | 7,055 kg |
|---|---|
| main group | |
| subgroup | |
| side | |
| max width | 2.39 |
| min width | 2.39 |
| max length | 4.75 |
| transportation height | 2.19 |
| max height | 2.19 |
| min length | 4.75 |
| model | |
| brand | |
| engine | |
| working height | |
| platform height | |
| capacity | |
| dimensions | |
| weight | |
| item designation | SBD-151 |
| platform length extended | 6,21 |
| max platform depth | 2,18 |
| platform length | 3,81 |
| min platform depth | 2,18 |
| platform size |
With a platform length of 6 metres, this aerial work platform is one of the larger ones and can accommodate up to 5 people at the same time.
In addition, the JLG 4394RT lift has an 8.3 m2 platform, which means that the platform can be used by several people at the same time.
The built-in diesel engine has a disproportionate amount of power for its size. This makes the scissor lift highly manoeuvrable off-road. In addition, the working platform can travel on gradients of up to 40%. The platform can also be moved at full working height.
A very user-friendly control system ensures efficient operation. A good support for a secure hold when working is on board.
Are you interested in the 4394RT lifting platform? We would be happy to discuss the job with you and prepare a customised quote. You too can use this excellent lifting platform from JLG on site at your premises.
|
