Renting PB work platforms – maximum height in the tightest space

Anyone who needs to reach 22 metres working height in a high-bay warehouse but has only 1.40 metres of aisle width available hits a physical limit with standard machines. PB Lifttechnik has understood this limit as a design challenge: build narrower, lift higher, carry more. The result is scissor lifts that have no direct competitor in the German-speaking region. Luibl provides PB rental machines with special low-loader transport directly to the site – UVV-inspected, ready for use, compliant with DIN EN 280.

PB Lifttechnik is a German company – development, design and manufacturing in Germany. That is not a marketing attribute but has a direct impact on the machine: the patented PB scissor design is engineered for minimal deflection at maximum lifting height. At 22 metres working height, every millimetre of deflection at the platform edge is a safety and precision problem. PB solves this with a scissor geometry of increased rigidity that delivers a stable working position despite extreme extension.

The unique selling point of the S series in figures:

• Track width from 1.22 m – narrower than a Euro pallet is wide

• Working heights up to 22 m and beyond

• Load capacities up to 900 kg – multi-person operation and heavy tools at the same time

• Electric drive – emission-free, low-noise, designed for continuous operation in enclosed halls

In a modern logistics centre near Leipzig, the PB S225-12ES enabled maintenance work at 22 metres height in an aisle width of only 1.40 metres. Conventional scissor lifts would not have met this combination of aisle width and working height – the project would have had to rely on a climbing solution or elaborate rack dismantling.

The S series is the core product of the PB rental fleet at Luibl. All models share three properties: electric drive, non-marking tyres and a platform with an extendable extension that enlarges the working area without repositioning the machine.

PB S171-12ES:

• Working height: 17.1 m

• Platform width (retracted): 1.22 m

• Load capacity: up to 750 kg

• Platform extension: extends the working area laterally without repositioning the machine

• Application scenario: electrical installations in production halls with existing racking. The combination of 17 m height and 1.22 m track width fits into standard aisles without clearing the racks.

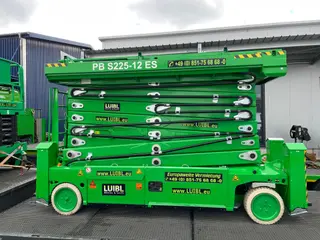

PB S225-12ES:

• Working height: 22.5 m

• Platform width (retracted): 1.22 m

• Load capacity: up to 900 kg

• Design feature: patented scissor geometry with increased rigidity for minimal deflection at maximum lifting height

• Application scenario: sprinkler-system maintenance, ventilation cleaning and fire-protection installation in high-bay warehouses of class 4+ (over 20 m storage height). The 900 kg load capacity allows the transport of spare parts, tools and two technicians in a single lift.

In logistics, it is rarely about a single technician with hand tools. Fire-protection installations require pipe sections, fittings and assembly tools on the platform. Sprinkler work at 20+ metres height means ladders, hoses and several specialists at the same time. In this context, a load capacity of 900 kg is not a reserve – it is an operational necessity.

PB S-series models achieve these load capacities without increasing the track width. The vertical extension of the scissor transfers the load vertically upwards, without lateral force components that would impair stability in narrow aisles. Automatic levelling ensures that the machine can be operated safely even on slightly uneven hall-floor areas – expansion joints, drainage channels, minor gradient sections – without spreader plates.

Three technical properties make the PB rental solution concretely more economical for logistics centres than the alternatives:

Compactness without sacrificing load capacity: Other narrow scissor lifts reach the 1.22 m track width but reduce the load capacity to 450–500 kg to do so. The PB S series maintains both – narrow-aisle capability and 900 kg load capacity – in a single machine. Fewer lifts, shorter project duration.

Electric drive for shift operation: PB platforms are designed for high cycle durability. The battery capacity is designed for complete work shifts – no unplanned charging stops during an ongoing fire-protection installation. The electric motor runs emission-free and low-noise, which allows parallel operation alongside ongoing warehouse activity.

Platform extension without repositioning the machine: The extendable platform extension enlarges the working area laterally without having to reposition the machine. In a narrow aisle, repositioning a platform at 20+ metres lifting height is a matter of time and safety. The extension replaces several position changes with a single lever movement.

The Luibl rental portfolio of the PB series covers the following height classes:

• 15 m – 17 m: For medium warehouses, production halls, workshop ceilings. Models such as the PB S171-12ES are the narrowest available option with high load capacity in this class.

• 20 m – 22 m: For high-bay warehouses of the upper classes, cold stores with a large clear height, industrial halls in the automotive segment. The PB S225-12ES is the reference machine here.

• Over 22 m: On request – Luibl has access to special configurations of the PB series for special construction sites with extreme ceiling heights.

All models are inspected and certified in accordance with DIN EN 280 (mobile elevating work platforms – calculations, stability, construction). Valid UVV inspection certificates are supplied with every delivery.

Automatic levelling: The drive system detects ground unevenness and compensates for it without the operator having to intervene manually. For hall-floor areas with changing conditions – typical in logistics centres with vehicle traffic and expansion joints – this is an active safety function, not just comfort.

Proportional control: The travel movement responds proportionally to the lever position – slow lever deflection means slow travel, even when the battery is fully charged. In narrow aisles at 20 metres height, sensitive control is not an optional feature but safety-relevant. A machine without proportional control responds too abruptly in such situations.

Non-marking tyres: PB S-series models come with non-marking tyres as standard. Epoxy and polyurethane coatings on high-bay warehouse floors remain undamaged – no cleaning costs after the rental period, no queries about floor damage on return.

Battery capacity for full shifts: PB platforms are designed for multi-shift operation. The battery capacity allows a complete 8-hour shift without intermediate charging, even with frequent lift cycles at great heights. For project work with a fixed completion date, this eliminates unplanned machine stops.

PB S-series scissor lifts are among the special machines in the Luibl rental fleet that require a direct delivery service with a special low-loader. Luibl coordinates delivery, unloading position and set-up location directly with the person responsible on site – no logistics coordination via third-party providers.

Request availability, delivery date and rental terms directly via the contact form: specify the model, place of use, on-site aisle width and rental period. If you are unsure about the right model, telephone expert advice is available – aisle-width measurement and load requirements clarify the model choice in a few minutes.

Delivery to Germany, Austria, Switzerland, Poland, the Czech Republic, Italy, Hungary and other European countries.
