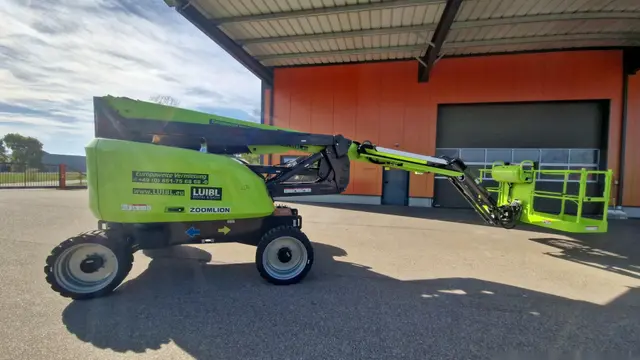

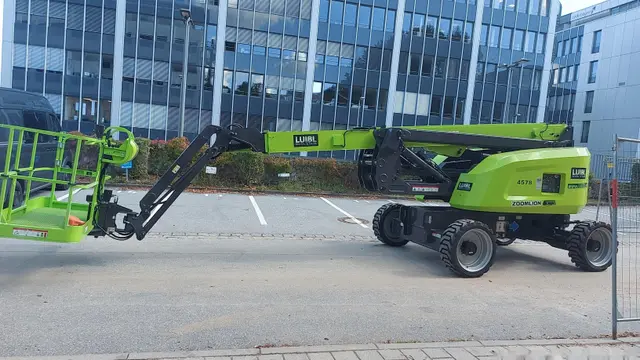

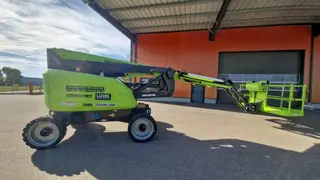

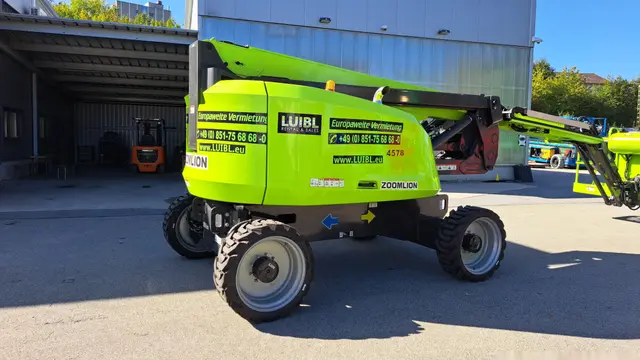

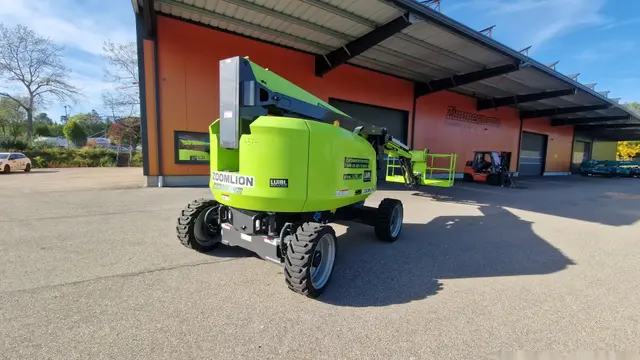

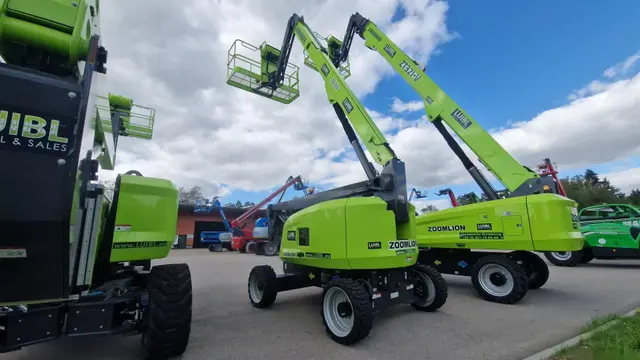

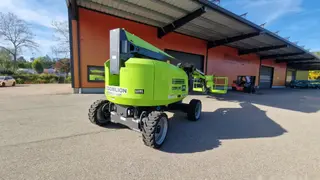

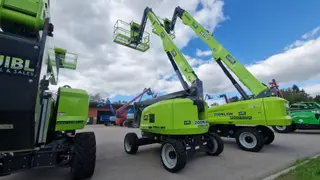

Rent the Zoomlion ZA20J – diesel articulating boom lift with 21 m working height

The Zoomlion ZA20J is a rough-terrain articulating boom lift with diesel drive, 21.38 m working height, 12.30 m horizontal outreach and a lifting capacity of up to 360 kg. With its articulated telescopic boom and jib it reaches work points over obstacles – on construction sites, façades and industrial plants. Rent the ZA20J from Luibl anywhere in Europe, with transport and operator familiarisation on request.

Dual capacity up to 360 kg

The ZA20J works with two load ranges. In the restricted working range it lifts up to 360 kg; in the full working range 250 kg are permitted. In practice, this means two technicians plus tools and material fit into one lift. The platform measures 2.44 × 0.91 m and rotates ±90°.

21.38 m working height and 12.30 m outreach

The platform rises to 19.38 m, which corresponds to a working height of 21.38 m. The 12.30 m horizontal outreach and the up-and-over height of 8.25 m allow work over canopies, extensions or parked vehicles. The turntable rotates 360° continuously and the jib is 1.53 m long. This lets you position the platform precisely at the component without repositioning the machine.

Rough-terrain capable and manoeuvrable

Oscillating axle, 45 % gradeability (24°) and 0.42 m ground clearance bring the ZA20J into position even on unpaved site ground. Foam-filled tyres (33×12/D610) rule out punctures, and the drive speed is up to 6.1 km/h. The machine stays easy to manoeuvre: 2.51 m inside turning radius, 5.47 m outside and only 0.40 m tail swing.

The lift is powered by a Weichai WP3.2 diesel engine; the fuel tank holds 150 l.

Stowed, the ZA20J measures 8.82 m × 2.46 m × 2.52 m (L × W × H) with a weight of 10,000 kg. On request we organise transport, delivery and return in full – see Transport for details.

Safe operation

The lift is controlled with proportional joysticks. Standard equipment includes a load sensing system, tilt protection, automatic levelling with multi-pressure control, emergency lowering, emergency stop, crush protection, horn, all-motion alarm, self-closing entry gate, flashing beacon, an on-board diagnostic system and an LED display. The machine is CE compliant. On request, Luibl provides operator familiarisation in line with applicable regulations; operation requires appropriate training.

Typical applications

The ZA20J is the versatile machine for medium heights outdoors: façade, roof and gutter work, steel and hall construction, installation of signage, maintenance on industrial plants and tree care. Wherever obstacles have to be reached over and two people work with material, it plays to its strengths.

Rent the Zoomlion ZA20J from Luibl

Do you need the ZA20J for a specific project? We check availability for your period of use and prepare an individual quote. Comparable machines in the same height class are the Genie Z62/40J RT and the Manitou 200 ATJ. If you need less height, the Genie Z51/30J RT is the more compact alternative; for greater heights the Genie Z80/60 is available. You will find all other models in the articulating boom lifts category.

Advantages of the Zoomlion ZA20J

• Dual capacity up to 360 kg – people and material in one lift
• 21.38 m working height with 12.30 m horizontal outreach
• 1.53 m jib, platform rotates ±90°, turntable 360° continuous
• Oscillating axle, 45 % gradeability, foam-filled tyres
• Manoeuvrable: only 0.40 m tail swing

Technical data

Platform rotation ±90° · turntable rotation 360° continuous · jib 1.53 m · tail swing 0.40 m · wheelbase 2.52 m · ground clearance 0.42 m · turning radius inside 2.51 m / outside 5.47 m · drive speed 6.1 km/h · gradeability 45 % (24°) · oscillating axle · Weichai WP3.2 engine · fuel tank 150 l · hydraulic tank 75 l · foam-filled tyres 33×12/D610 · max. wind speed 12.5 m/s · CE compliant

Frequently asked questions about the Zoomlion ZA20J

How high does the Zoomlion ZA20J reach?

The Zoomlion ZA20J reaches a working height of 21.38 m. The platform height is 19.38 m and the horizontal outreach 12.30 m.

How much can the ZA20J lift?

Up to 360 kg in the restricted working range and 250 kg in the full working range. The load sensing system monitors the load automatically.

What does dual capacity mean for an articulating boom lift?

The machine has two load ranges: with reduced outreach a higher platform load is permitted than at full reach. The control system limits the working range automatically according to the load.

Is the ZA20J suitable for unpaved terrain?

Yes. Oscillating axle, 45 % gradeability, 0.42 m ground clearance and puncture-proof, foam-filled tyres make it fit for construction sites.

What are the transport dimensions of the Zoomlion ZA20J?

Stowed, the machine measures 8.82 m × 2.46 m × 2.52 m (L × W × H) and weighs 10,000 kg.
