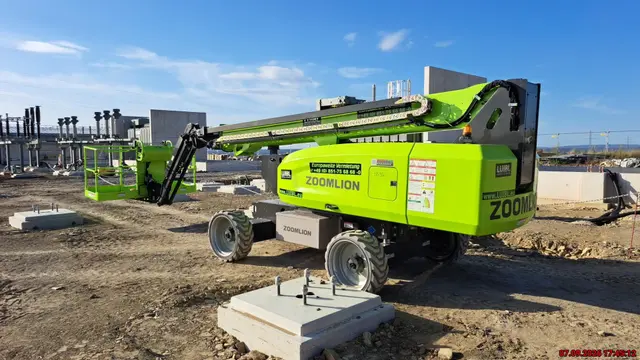

Rent the Zoomlion ZT21JE-Li – electric telescopic boom lift with 23 m working height

The Zoomlion ZT21JE-Li is a fully electric telescopic boom lift with 22.95 m working height, 15.50 m horizontal outreach and a lifting capacity of up to 454 kg. It combines emission-free battery operation with a platform capacity otherwise reserved for diesel machines – making it the machine for installations where people and material have to go up together. Rent the ZT21JE-Li from Luibl anywhere in Europe, with transport and operator familiarisation on request.

Dual capacity up to 454 kg

The ZT21JE-Li works with two load ranges. In the restricted working range – i.e. with reduced outreach – it lifts up to 454 kg. With the boom fully extended, 300 kg are permitted. In practice this means two technicians plus tools, fixings and a component fit into one lift. You save the second trip up and down that otherwise lengthens every installation step when platform capacity is tight.

The platform measures 2.44 × 0.91 m. That is considerably more standing area than on the smaller sister machine ZT18JE-Li and makes a difference as soon as longer components – profiles, cable trays or light strips – have to go up.

22.95 m working height and 15.50 m outreach

With 22.95 m working height, the ZT21JE-Li covers the range most frequently needed for hall installations, façade work on five- to six-storey buildings and maintenance of industrial plants. The three-section telescopic boom provides 15.50 m horizontal outreach – so you reach the work point even if the area underneath cannot be driven on.

The boom is supplemented by a jib with 130° articulation (−55° to +75°). This lets you guide the platform over roof overhangs, behind pipe racks or above fixed plant components to the work site. The turntable rotates 360° continuously and the platform rotates ±90°. In many cases this makes repositioning the machine unnecessary.

Emission-free lithium-ion drive

Power comes from a 51.52 V, 375 Ah lithium-ion battery. There are no exhaust emissions on site and the noise level is well below that of a diesel lift. This qualifies the ZT21JE-Li for jobs where a conventional machine reaches organisational or legal limits:

• Maintenance in production halls while manufacturing continues
• Installations in logistics and warehouse halls with staff present at all times
• City-centre construction sites with emission restrictions
• Night and weekend work near residential areas
• Underground car parks, multi-storey car parks and enclosed areas
• Areas with air quality requirements, such as food and pharmaceutical production

There is also an organisational advantage: no refuelling, no diesel cans and no storage of hazardous substances on site.

Rough-terrain capable and compact

The ZT21JE-Li is not an indoor-only machine. Four-wheel drive, a permanently active oscillating axle and 45 % gradeability (24°) bring it into position even on unpaved site ground. Foam-filled tyres rule out punctures, ground clearance is 0.33 m and the drive speed is up to 5.2 km/h.

The machine stays easy to manoeuvre: 2.69 m inside turning radius, 5.45 m outside and a tail swing of 1.70 m. This lets you reach the work site even in tight yards or halls.

Stowed, the ZT21JE-Li measures 9.40 m × 2.46 m × 2.70 m (L × W × H) with a weight of 10,400 kg. It therefore remains transportable with standard equipment. On request we organise transport, delivery and return in full – see Transport for details.

Safe operation and regulations

The lift is controlled with proportional joysticks. Standard equipment includes a tilt warning system, a load sensing system, auto-levelling, emergency lowering, emergency stop, all-motion alarm, self-closing entry gate, flashing beacon and an on-board diagnostic system. The machine is CE compliant.

The operation of mobile elevating work platforms is subject to national occupational safety regulations: operators need instruction and written authorisation from their employer. Our training courses provide the appropriate qualifications.

Typical applications

Typical applications are industrial installation and plant engineering, hall and steel construction, electrical, ventilation and sprinkler installations under the ceiling, façade work, signage, and maintenance of crane runways, lighting and fire alarm systems. Wherever material has to go up alongside two technicians and work has to be emission-free at the same time, the ZT21JE-Li is the right machine.

Rent the Zoomlion ZT21JE-Li from Luibl

Do you need the ZT21JE-Li for a specific project? We check availability for your period of use and prepare an individual quote. If you need less height, the Zoomlion ZT18JE-Li with 20.60 m is the more compact alternative; for greater heights the ZT26JE with 28.70 m is available. You will find all other models in the telescopic boom lifts category.

Advantages of the Zoomlion ZT21JE-Li

• Dual capacity up to 454 kg – people and material in one lift
• 22.95 m working height with 15.50 m horizontal outreach
• Large platform measuring 2.44 × 0.91 m
• Locally emission-free and quiet – also for indoor and night work
• Three-section telescopic boom plus jib with 130° articulation
• Lithium-ion battery 51.52 V / 375 Ah, no fuel logistics
• Four-wheel drive, oscillating axle and 45 % gradeability
• Turntable rotates 360° continuously, platform rotates ±90°
• Foam-filled tyres – no downtime due to punctures

Technical data

Platform size 2.44 × 0.91 m · platform rotation ±90° · turntable rotation 360° continuous · jib 130° (−55°/+75°) · tail swing 1.70 m · wheelbase 2.52 m · track width 2.46 m · ground clearance 0.33 m · turning radius inside 2.69 m / outside 5.45 m · drive speed 5.2 km/h · gradeability 45 % (24°) · battery 51.52 V / 375 Ah lithium-ion · charger 48 V / 60 A · drive motor 3.3 kW · lift motor 10 kW · hydraulic tank 75 l · foam-filled tyres · max. wind speed 12.5 m/s · oscillating axle · four-wheel drive · three-section telescopic boom · CE compliant

Frequently asked questions about the Zoomlion ZT21JE-Li

How high does the Zoomlion ZT21JE-Li reach?

The Zoomlion ZT21JE-Li reaches a working height of 22.95 m. The platform height is 20.95 m and the horizontal outreach 15.50 m.

How much can the ZT21JE-Li lift?

In the restricted working range the platform carries up to 454 kg, in the full working range 300 kg. The platform measures 2.44 × 0.91 m.

What does dual capacity mean for a telescopic boom lift?

Dual capacity means the machine allows a higher platform load as long as the boom is not fully extended. On the ZT21JE-Li that is 454 kg instead of 300 kg. The control system monitors the permitted working range automatically.

Is the ZT21JE-Li suitable for halls and indoor spaces?

Yes. The drive is fully electric and works emission-free and quietly on site. Please check the permissible floor load in advance: the machine weighs 10,400 kg.

What are the transport dimensions of the Zoomlion ZT21JE-Li?

Stowed, the machine measures 9.40 m × 2.46 m × 2.70 m (L × W × H) and weighs 10,400 kg.

How does the ZT21JE-Li differ from the ZT18JE-Li?

The ZT21JE-Li offers 2.35 m more working height, 2.20 m more horizontal outreach, a larger platform and, at 454 kg, considerably more lifting capacity. The ZT18JE-Li, on the other hand, is lighter and more compact.
