Rent the Zoomlion ZT32J-V – diesel telescopic boom lift with 34 m working height

The Zoomlion ZT32J-V is a rough-terrain telescopic boom lift with diesel drive, 34.30 m working height, 19.20 m horizontal outreach and a lifting capacity of up to 454 kg. It combines great height with a platform capacity that takes two technicians plus material up in one lift – without extendable axles and therefore ready for use quickly. Rent the ZT32J-V from Luibl anywhere in Europe, with transport and operator familiarisation on request.

Dual capacity up to 454 kg

The ZT32J-V works with two load ranges. In the restricted working range it lifts up to 454 kg; in the full working range 300 kg are permitted. That is enough for two people with tools, fixings and components. You save additional trips between the ground and working height.

The platform measures 2.44 × 0.91 m and rotates ±90°.

34.30 m working height and 19.20 m outreach

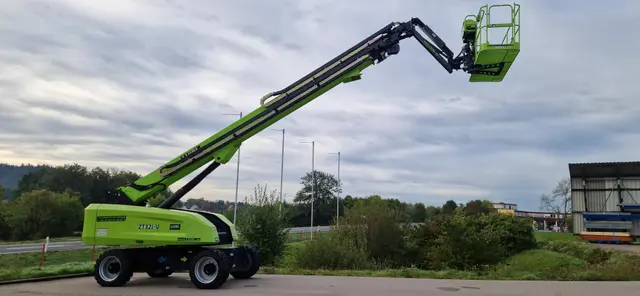

With 34.30 m working height and 32.30 m platform height, the ZT32J-V reaches roof edges, façades and plant components that are too high for machines in the 28 m class. The telescopic boom with hexagonal profile is torsion-resistant and provides 19.20 m horizontal outreach. The jib articulates through 130° (−55° to +75°) and the turntable rotates 360° continuously. This lets you position the platform precisely, even over obstacles.

Rough-terrain capable without extendable axles

Four-wheel drive, oscillating axle, 45 % gradeability (24°) and 0.41 m ground clearance bring the ZT32J-V into position even on unpaved site ground. As the axles do not need to be extended, it is ready for use immediately after unloading. The drive speed is up to 5.5 km/h, the turning radius 3.50 m inside and 6.10 m outside.

The lift is powered by a Kubota diesel engine meeting EU emission Stage V. According to the manufacturer, the load-sensing hydraulic system reduces energy consumption by 13 %. The fuel tank holds 150 l.

Stowed, the ZT32J-V measures 12.90 m × 2.49 m × 2.75 m (L × W × H) with a weight of 18,060 kg. On request we organise transport, delivery and return in full – see Transport for details.

Safe operation

The lift is controlled with proportional joysticks. Standard equipment includes a load sensing system, tilt protection, automatic levelling, emergency lowering, emergency stop, horn, all-motion alarm, self-closing entry gate, flashing beacon and an on-board diagnostic system. The machine is CE compliant. On request, Luibl provides operator familiarisation in line with applicable regulations; operation requires appropriate training.

Typical applications

The ZT32J-V is built for great heights with high platform capacity: steel and hall construction, façade and roof work on tall buildings, installation and maintenance on industrial plants, power stations and silos, bridge construction, and the installation of signage and lighting. Wherever two technicians work with material at more than 30 m, it is the right machine.

Rent the Zoomlion ZT32J-V from Luibl

Do you need the ZT32J-V for a specific project? We check availability for your period of use and prepare an individual quote. If you need less height, the Haulotte H28TJ Plus and the electric Zoomlion ZT26JE are the more compact alternatives; for greater heights the JLG 1200SJP with 38.73 m is available. You will find all other models in the telescopic boom lifts category.

Advantages of the Zoomlion ZT32J-V

• Dual capacity up to 454 kg – people and material in one lift
• 34.30 m working height with 19.20 m horizontal outreach
• Ready for use immediately without extendable axles
• Four-wheel drive, oscillating axle, 45 % gradeability
• Jib 130°, platform ±90°, turntable 360° continuous
• Kubota diesel to emission Stage V

Technical data

Platform rotation ±90° · turntable rotation 360° continuous · jib 130° (−55°/+75°) · tail swing 1.52 m · wheelbase 2.80 m · track width 2.49 m · ground clearance 0.41 m · turning radius inside 3.50 m / outside 6.10 m · drive speed 5.5 km/h · gradeability 45 % (24°) · Kubota diesel engine (Stage V) · fuel tank 150 l · hydraulic tank 150 l · four-wheel drive · front-wheel steering · oscillating axle · max. wind speed 12.5 m/s · CE compliant

Frequently asked questions about the Zoomlion ZT32J-V

How high does the Zoomlion ZT32J-V reach?

The Zoomlion ZT32J-V reaches a working height of 34.30 m. The platform height is 32.30 m and the horizontal outreach 19.20 m.

How much can the ZT32J-V lift?

Up to 454 kg in the restricted working range and 300 kg in the full working range. The load sensing system monitors the load automatically.

What does dual capacity mean for a telescopic boom lift?

The machine has two load ranges: with reduced outreach a higher platform load is permitted than at full reach. The control system limits the working range automatically according to the load.

Does the ZT32J-V need to extend its axles before use?

No. The ZT32J-V works without extendable axles and is ready for use immediately after unloading.

What are the transport dimensions of the Zoomlion ZT32J-V?

Stowed, the machine measures 12.90 m × 2.49 m × 2.75 m (L × W × H) and weighs 18,060 kg.
