RMK-1908 | Maeda CC1908
Advantages
- RMK-1908 | Maeda CC1908: mini crane for professional applications. Working height: 19.2 m; Lift height: 20.1 m.
RMK-1908 | Maeda CC1908 – mini crane
Rent the Maeda CC1485n – a telescopic crawler crane with a 6-tonne lifting capacity for heavy-duty pick-and-carry operations.
The Maeda CC1485 is the most powerful model in the Maeda CC crawler series, offering a lifting capacity of 6,000 kg at a 2.6 m radius and a pick-and-carry capacity of 2,000 kg—all without the need to extend outriggers. Luibl Rental delivers the unit directly to your job site, complete with a current safety inspection (UVV) and maintenance record.
Technical Specifications
The CC1485 features a fully automatic, 5-section telescopic boom with a pentagonal cross-section. The maximum hook height is 16.7 m, increasing to 22.0 m with the optional two-piece fly jib. The unit is powered by a Stage V-compliant Isuzu 4LE2 diesel engine. Transport dimensions: 6,560 × 2,490 × 2,865 mm; dead weight: approx. 14,560 kg. Key specifications at a glance:
Maximum load capacity: 6,000 kg at 2.6 m radius
Pick & Carry: 2,000 kg; load can be transported while suspended
Max. hook height: 16.7 m (22.0 m with fly jib)
Maximum radius: 16.1 m at 430 kg
Tail swing radius: Compact (6-tonne class); check exact figure in data sheet
Transport width: 2,490 mm
Transport height: 2,865 mm
Dead weight: Approx. 14,560 kg
Engine: Isuzu 4LE2, Stage V
Steel tracks standard; optional rubber pads
Dozer blade: Optional (not standard)
Optional fly jib: 2-section, 22.0 m hook height
The standard steel tracks distribute weight evenly across the ground. Optional rubber pads are recommended for operations on industrial or concrete floors to prevent surface damage.
Pick & Carry in the 6-tonne class
Cranes in this capacity class typically require extended outriggers, occupying a significant footprint. The CC1485 operates without outriggers. The crawler undercarriage ensures complete stability, allowing the crane to transport a 2,000 kg load directly on the hook.
This makes a tangible difference in projects requiring loads to be moved over longer distances: no need to deploy and retract outriggers between individual lifts, no cordoning off areas for outrigger pads, and no work stoppages in adjacent areas. In manufacturing halls, power plant buildings, or urban construction sites with limited setup space, this directly impacts project timelines.
The fully hydraulic crawler undercarriage enables precise control—even when handling heavy loads on uneven ground or near embankment edges. Areas of Application
The CC1485 is ideal for situations requiring both high lifting capacity and maneuverability in extremely tight spaces:
Industrial and plant assembly: Machinery replacement and heavy-load assembly within existing production halls featuring limited ceiling height and narrow aisles
Specialist civil engineering and infrastructure construction: Positioning heavy precast components, steel beams, and bridge elements on sites with no space for outriggers
Power plants and energy supply: Dismantling and installing plant components inside buildings with floor load-bearing limitations
Steel construction and heavy-load assembly: Transporting and positioning steel beams, machine foundations, or heavy modules over distances of several meters
Infrastructure projects: Lifting operations in tunnel and underground projects; hook depth down to -24.5 m below ground level (using 4-part reeving)
Safety Features
Standard equipment (per data sheet):
Programmable load moment limiter with fully programmable working envelope; working range limits for virtual ceiling heights and obstacles
Large color display in an enclosed, air-conditioned operator cab
Tilt and tip alarms (audible and visual)
Steel tracks as standard; rubber pads optional
Hydraulic safety valves on all cylinders
Over-rotation protection; winch
Reversing camera
Data logger for comprehensive operational documentation
Safety interlock
LED warning light and work lights
Emergency stop switch
Every rental unit leaves Luibl Rental with a current safety inspection (UVV) and maintenance record. Professional operator training is mandatory prior to initial use—please contact us if required.
Rent the Maeda CC1485 from Luibl Rental
Luibl Rental delivers the CC1485 to your construction site using its own fleet of low-loader trailers—serving Germany, Austria, Switzerland, and other European countries. We prepare customized quotes for long-term rentals and large-scale projects, including maintenance intervals and UVV safety inspections upon request.
Service hours: Monday to Friday, 8:00 a.m. – 5:00 p.m.

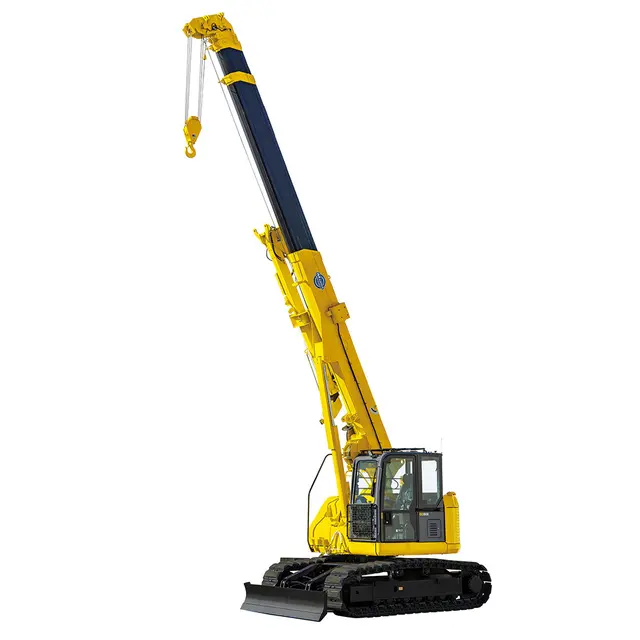

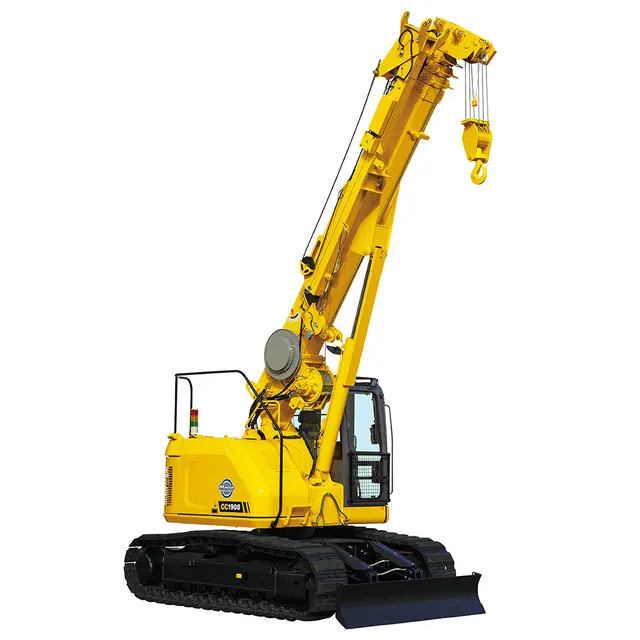

Rent the Maeda CC1908 – 8-tonne class telescopic crawler crane with pick-and-carry capability
The Maeda CC1908 is the most powerful crane in the Maeda CC crawler series, offering a lifting capacity of 8,100 kg and a pick-and-carry capacity of 3,500 kg—all without the need for outriggers. Luibl Rental delivers the unit directly to your job site, complete with a current safety inspection (UVV) and maintenance record.
Technical Specifications
The CC1908 features a fully automatic, 5-section telescopic boom with a maximum hook height of 20.1 m. With the optional fully hydraulic fly jib, the hook height increases to 26.0 m. The unit is powered by a Yanmar Stage V diesel engine. Operating weight: approx. 19,400 kg.
Key specifications at a glance:
Maximum lifting capacity: 8,100 kg at 2.8 m radius
Pick-and-carry: 3,500 kg (load can be moved while suspended)
Max. hook height: 20.1 m (26.0 m with fly jib)
Maximum working radius: 19.23 m at 340 kg
Tail swing radius: 1,670 mm
Operating weight: approx. 19,400 kg
Engine: Yanmar, Stage V
Steel tracks (standard); optional rubber pads
Dozer blade: optional (not standard)
10.4-inch touchscreen (standard)
360° all-round camera system (standard)
The standard steel tracks are suitable for outdoor use and rough terrain. Optional rubber pads are recommended for operations on industrial or concrete floors. 3,500 kg Pick & Carry – what this means in practice
A 3,500 kg pick-and-carry capacity represents the highest rating in the entire Maeda CC series. For comparison, the CC985 and CC1485 are rated at 2,000 kg. The CC1908 thus handles operations requiring the transport of loads between 2 and 3.5 tonnes across the job site without the need for outriggers.
This makes a tangible difference on large-scale projects: there is no need to plan for outrigger footprints, reposition between lifts, or halt work in adjacent areas. In manufacturing halls, power plant buildings, and tunnel or underground garage projects, this quickly adds up to days of saved project time.
The fully hydraulic crawler undercarriage ensures precise control, even when handling heavy loads on uneven terrain. Applications
The CC1908 is the right crane when the 6-tonne capacity of the CC1485 is insufficient and "pick & carry" capabilities for loads exceeding 2,000 kg are required:
Heavy industrial and plant installation: Machinery replacement in confined production halls; turbine and press installations with limited overhead clearance; dismantling of heavy plant components during active operations
Infrastructure and bridge construction: Positioning heavy steel or precast concrete components on sites lacking the space for mobile crane outriggers
Power plants and energy supply: Lifting transformers, valve blocks, and piping components inside buildings with floor load-bearing limitations
Specialist civil engineering: Pick & carry operations for pipeline installation, drilling rig work, or foundation projects in confined areas
Tunneling and underground garage projects: Lifting to depths of up to 148.8 m (single-line reeving) and working under overhead height restrictions
Safety features
Standard equipment:
Programmable load moment limiter with working range limits; adjustable virtual ceiling heights and obstacle zones

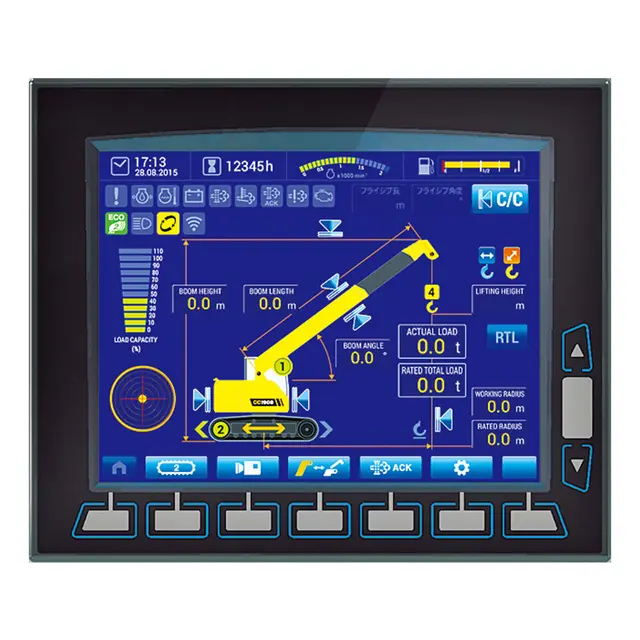

10.4-inch touchscreen in an enclosed, air-conditioned operator cab with a panoramic roof
360° camera system, plus rear and front cameras
Tilt alarm (audible and visual)
Steel tracks (standard), rubber pads (optional)
Hydraulic safety valves on all cylinders
Over-rotation protection; winch
Slew range limiter
Safety interlock
LED operation warning light and work lights
Data logger for comprehensive operational documentation
Emergency stop switch
Every rental unit leaves Luibl Rental with a valid UVV (accident prevention) inspection and maintenance record. Proper instruction of operating personnel is mandatory before initial use.
Rent the Maeda CC1908 from Luibl Rental
Luibl Rental delivers the CC1908 directly to your construction site using its own fleet of low-loader trailers—serving Germany, Austria, Switzerland, and other European countries. We provide customized quotes for long-term rentals and major projects, including options for mandatory safety inspections (UVV) and scheduled maintenance.
Service hours: Monday to Friday, 08:00–17:00.
Submit inquiries via our contact form or by phone: 0800 75 68 68 0 (DE) / +43 720 204026 (AT).
Frequently asked questions about the Maeda CC1908
What is the difference between the CC1908 and the CC1485? The CC1485 has a maximum lifting capacity of 6,000 kg, while the CC1908 lifts 8,100 kg. The more critical difference regarding "pick & carry" operations is the load-carrying capacity while moving: the CC1485 handles 2,000 kg, whereas the CC1908 handles 3,500 kg. The CC1908 is heavier (approx. 19,400 kg vs. 14,560 kg) and wider, requiring more clearance for access. If the load is under 2 tonnes and transport width is a critical factor, the CC1485 or CC985 is the better choice....
Key specifications
- Working height: 19.2 m
- Lift height: 20.1 m
- Load capacity: 8,100 kg
- Horizontal outreach: 19.2 m
- Width: 2.49 m
