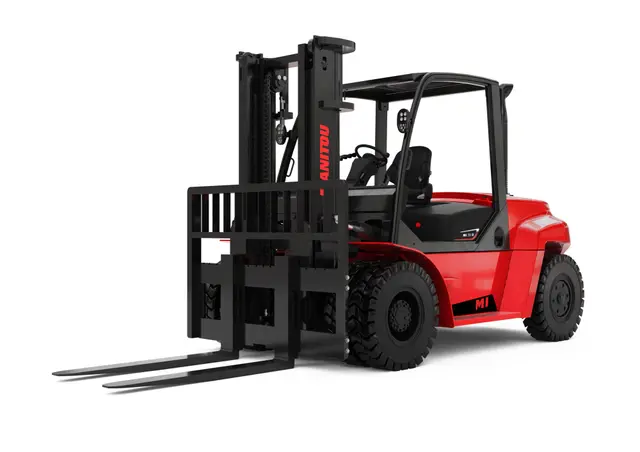

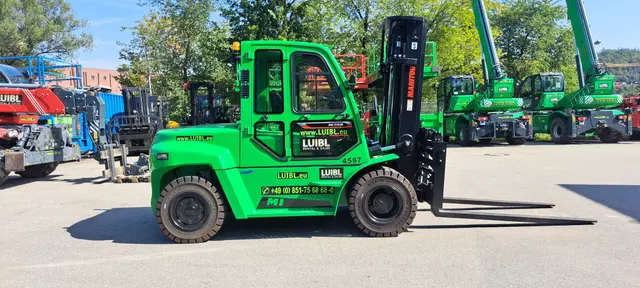

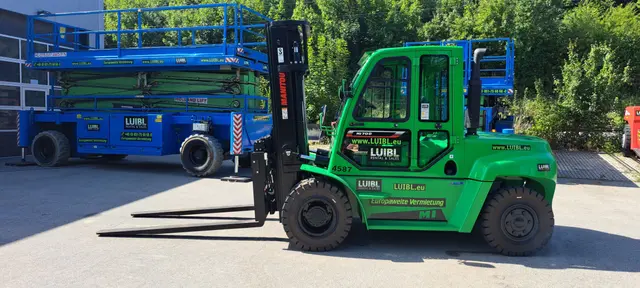

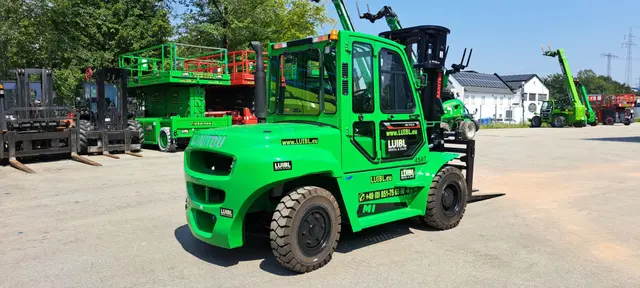

Manitou MI 70 Triplex 4500 mm

Advantages

• Manitou MI 70 Triplex 4500 mm: forklift for professional applications. Lift height: 6 m; Load capacity: 7,000 kg.

Manitou MI 70 Triplex 4500 mm – forklift

Technical Data
Load capacity: 7,000 kg

Max. lifting height: 4,500 mm

Mast type: Triplex with free lift

Free lift: approx. 1,460–1,500 mm (please verify against current data sheet)

Engine: Deutz diesel, 55 kW

Transmission: ZF transmission

Brake: Oil-immersed multi-disc brake

Tires: Pneumatic tires 8.25-15 14PR

Own weight: approx. 9,600–11,000 kg, depending on configuration

Overall width: approx. 1,990 mm

Aisle width for 800×1200 pallet (lengthwise): 5,350 mm

Drive: Diesel

Standard equipment: Sideshift, load backrest, ergonomic operator station, power steering

Rent the Manitou MI 70 D – Triplex 4500 mm
With a 7-tonne load capacity, a triplex mast offering a 4,500 mm lifting height, and a Deutz diesel engine paired with a ZF transmission, the Manitou MI 70 D is the industrial counterbalance forklift designed for applications where 5-tonne models fall short. Steel coils, heavy machinery components, paper rolls, precast concrete elements—loads in this class require a machine built specifically for the job.

Area of ​​application
The MI 70 D is designed for use on paved surfaces, both indoors and outdoors—such as industrial halls, production facilities, and storage areas with asphalt or concrete flooring. Its pneumatic tires cushion minor ground irregularities and offer superior stability for a machine of this weight compared to solid rubber tires. Typical applications:

Heavy-load handling in the steel, paper, and timber industries

Loading and unloading heavy-duty trucks on paved outdoor areas

Handling machinery components and heavy plant equipment

Warehouse logistics in production facilities involving loads exceeding 5 tonnes

The 4,500 mm triplex version is the more compact configuration of the MI 70 D. It offers a lower mast transport height, making it suitable for indoor areas with limited overhead clearance where the 6,000 mm full-lift version would not fit. Free lift allows for lifting operations to begin before the mast itself starts to extend—a crucial feature where ceiling height or crane rails pose an obstruction.

Engine and transmission
The 55 kW Deutz diesel engine is designed for continuous operation under load. Deutz units are renowned in heavy-duty logistics for their robustness and low maintenance requirements—factors that directly impact operating costs during intensive shift work.

The ZF transmission distinguishes the MI 70 D from smaller MI models. ZF stands for precise power transmission, even with heavy loads and abrupt load changes. Combined with the oil-immersed multi-disc brake—which wears significantly more slowly than conventional drum brakes—this creates a powertrain designed for intensive industrial use rather than occasional operation.

Tires and ground loading
The MI 70 D runs on 8.25-15 14PR pneumatic tires. This is the standard configuration for this weight class: pneumatic tires absorb shocks better than solid rubber tires, reducing strain on the transmission and chassis when operating on uneven surfaces. For indoor operations on sensitive flooring—such as epoxy resin or painted surfaces—it is advisable to verify surface load limits and tire-to-floor compatibility beforehand.

Standard Equipment
Sideshift: Precise load positioning without the need to reposition the truck relative to the racking.

Load backrest: Operator protection against overhanging or unsecured loads.

Power steering: Highly maneuverable despite an unladen weight of nearly 10 tonnes.

Ergonomic operator station: Suspended seat, adjustable workspace, and clearly arranged instruments.

Easy maintenance access: Key maintenance points are quickly accessible, minimizing downtime.

Rent from Luibl Rental
The Manitou MI 70 D (Triplex 4500 mm) is available for rent from Luibl Rental and can be delivered across Europe via our own low-loader fleet. For extended projects, we offer long-term rental terms that include mandatory safety inspections (UVV) and scheduled maintenance.

Please contact us directly regarding alternative fork lengths or additional attachments.

Request a quote now: /kontakt/

FAQ
What distinguishes the Manitou MI 70 D from smaller MI models like the MI 35 or MI 50? Its weight class and powertrain. The MI 70 D lifts 7,000 kg—twice the capacity of the MI 35. It also features a ZF transmission (instead of a standard torque converter) and pneumatic tires (instead of solid rubber tires). This makes it the ideal choice for heavy-duty industrial applications where smaller models would reach their structural limits.

Why choose the Triplex 4,500 mm mast instead of the 6,000 mm full-free-lift mast? The 4,500 mm version has a lower mast height for transport. This is crucial in facilities with ceiling heights below 5.5 meters, in passageways beneath crane rails, or in buildings with limited vertical clearance. Those needing to lift to a full 6 meters choose the larger mast configuration, while those who do not benefit from the greater maneuverability of the more compact version.

Technical Data
Load capacity: 7,000 kg

Max. lifting height: 4,500 mm

Mast type: Triplex with free lift

Free lift: approx. 1,460–1,500 mm (please verify against current data sheet)

Engine: Deutz diesel, 55 kW

Transmission: ZF transmission

Brake: Oil-immersed multi-disc brake

Tires: Pneumatic tires 8.25-15 14PR

Own weight: approx. 9,600–11,000 kg, depending on configuration

Overall width: approx. 1,990 mm

Aisle width for 800×1200 pallet (lengthwise): 5,350 mm

Drive: Diesel

Standard equipment: Sideshift, load backrest, ergonomic operator station, power steering

Rent the Manitou MI 70 D – Triplex 4500 mm
With a 7-tonne load capacity, a triplex mast offering a 4,500 mm lifting height, and a Deutz diesel engine paired with a ZF transmission, the Manitou MI 70 D is the industrial counterbalance forklift designed for applications where 5-tonne models fall short. Steel coils, heavy machinery components, paper rolls, precast concrete elements—loads in this class require a machine built specifically for the job.

Area of ​​application
The MI 70 D is designed for use on paved surfaces, both indoors and outdoors—such as industrial halls, production facilities, and storage areas with asphalt or concrete flooring. Its pneumatic tires cushion minor ground irregularities and offer superior stability for a machine of this weight compared to solid rubber tires. Typical applications:

Heavy-load handling in the steel, paper, and timber industries

Loading and unloading heavy-duty trucks on paved outdoor areas

Handling machinery components and heavy plant equipment

Warehouse logistics in production facilities involving loads exceeding 5 tonnes

The 4,500 mm triplex version is the more compact configuration of the MI 70 D. It offers a lower mast transport height, making it suitable for indoor areas with limited overhead clearance where the 6,000 mm full-lift version would not fit. Free lift allows for lifting operations to begin before the mast itself starts to extend—a crucial feature where ceiling height or crane rails pose an obstruction.

Engine and transmission
The 55 kW Deutz diesel engine is designed for continuous operation under load. Deutz units are renowned in heavy-duty logistics for their robustness and low maintenance requirements—factors that directly impact operating costs during intensive shift work.

The ZF transmission distinguishes the MI 70 D from smaller MI models. ZF stands for precise power transmission, even with heavy loads and abrupt load changes. Combined with the oil-immersed multi-disc brake—which wears significantly more slowly than conventional drum brakes—this creates a powertrain designed for intensive industrial use rather than occasional operation.

Tires and ground loading
The MI 70 D runs on 8.25-15 14PR pneumatic tires. This is the standard configuration for this weight class: pneumatic tires absorb shocks better than solid rubber tires, reducing strain on the transmission and chassis when operating on uneven surfaces. For indoor operations on sensitive flooring—such as epoxy resin or painted surfaces—it is advisable to verify surface load limits and tire-to-floor compatibility beforehand.

Standard Equipment
Sideshift: Precise load positioning without the need to reposition the truck relative to the racking.

Load backrest: Operator protection against overhanging or unsecured loads.

Power steering: Highly maneuverable despite an unladen weight of nearly 10 tonnes.

Ergonomic operator station: Suspended seat, adjustable workspace, and clearly arranged instruments.

Easy maintenance access: Key maintenance points are quickly accessible, minimizing downtime.

Rent from Luibl Rental
The Manitou MI 70 D (Triplex 4500 mm) is available for rent from Luibl Rental and can be delivered across Europe via our own low-loader fleet. For extended projects, we offer long-term rental terms that include mandatory safety inspections (UVV) and scheduled maintenance.

Please contact us directly regarding alternative fork lengths or additional attachments.

Request a quote now: /kontakt/

FAQ
What distinguishes the Manitou MI 70 D from smaller MI models like the MI 35 or MI 50? Its weight class and powertrain. The MI 70 D lifts 7,000 kg—twice the capacity of the MI 35. It also features a ZF transmission (instead of a standard torque converter) and pneumatic tires (instead of solid rubber tires). This makes it the ideal choice for heavy-duty industrial applications where smaller models would reach their structural limits.

Why choose the Triplex 4,500 mm mast instead of the 6,000 mm full-free-lift mast? The 4,500 mm version has a lower mast height for transport. This is crucial in facilities with ceiling heights below 5.5 meters, in passageways beneath crane rails, or in buildings with limited vertical clearance. Those needing to lift to a full 6 meters choose the larger mast configuration, while those who do not benefit from the greater maneuverability of the more compact version....

Key specifications

• Lift height: 6 m
• Load capacity: 7,000 kg
• Width: 1.99 m
• Height: 7.24 m
• Weight: 10,110 kg

Check availability now and request a quote.
