GTD-162X | Manitou 160 ATJ Plus

working height: 16.21 m
capacity: 408 kg
lateral reach: 8.52 m
platform height: 14.21 m
dimensions: 7.09m (4.89m) x 2.45m x 2.47m
weight: 7500 kg
brand: Manitou
model: 160 ATJ Plus
engine: Diesel
item designation: GTD-162X

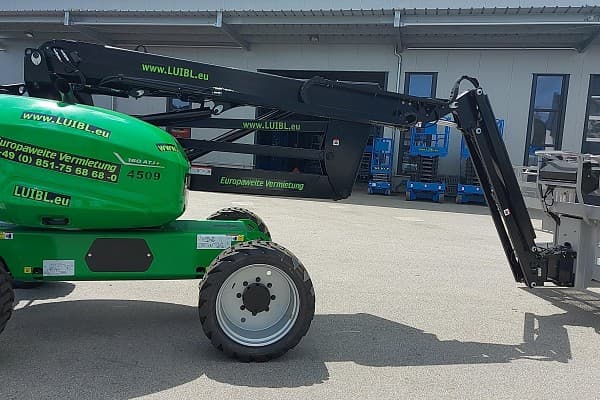

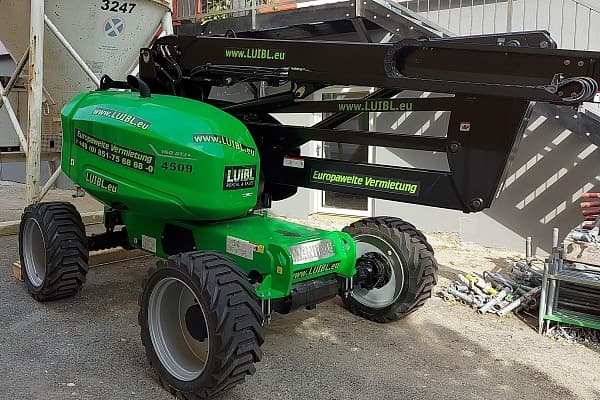

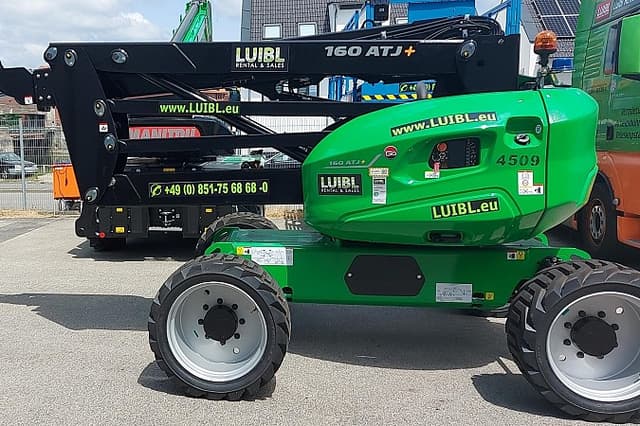

Articulated telescopic platform 16m with heavy load 160 ATJ+ for quick and easy rental at Luibl

This heavy duty articulated telescopic platform from Manitou is very flexible and versatile due to its narrow design. It can transport 3 operators up far uncomplicatedly and quickly. Aerial work platforms are perfect for maintenance or assembly work, for facade construction, building cleaning, painting and varnishing work or simply for a wide variety of repair work. Thanks to the latest engine with Stage V and particle filter, the articulated lift can be used both indoors and outdoors without any problems.

main group

model

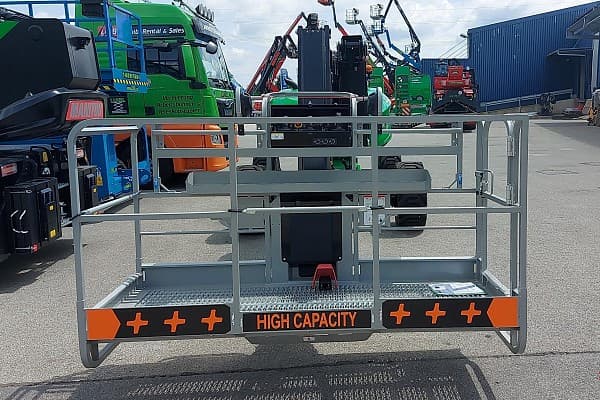

platform length extended

2.3

min platform depth

0.9

max platform depth

0.9

platform length

2.3

subgroup

max height

2.47

transportation height

2.47

max length

7.09

min length

4.89

max width

2.45

side

min width

2.45

brand

engine

working height

platform height

lateral reach

capacity

platform size

dimensions

weight

item designation

GTD-162X

Product datasheet

manitou_160_atj+_neu
