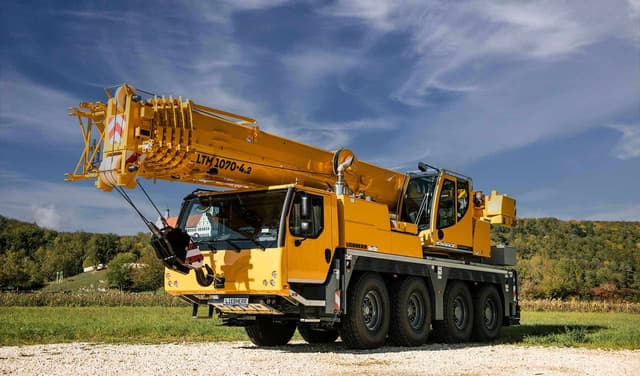

Mobile crane 70 tons | Liebherr LTM 1070 4.2

lifting height: 50.00 m
capacity: 70000 kg
lateral reach: 48.00 m
dimensions: 12,40m x 2,32m x 3,95m
weight: 54000 kg
brand: Liebherr
model: LTM 1070 4.2
item designation: Mobile crane 70 tons

The Liebherr LTM 1070 4.2 is a versatile mobile crane with a maximum lifting capacity of 70 tonnes. With a lateral reach of 2.50 metres, it can lift heavy loads safely and precisely. The telescopic boom ranges from 11.00 metres up to 50.00 metres, which provides a good reach for various applications.

The LTM 1070 4.2 has a grid tip that extends from 3.20 metres to 16.00 metres. This additional option expands the range of applications and enables work at greater heights.

The mobile crane is powered by a 6-cylinder diesel engine. With an output of 330 kW, the engine offers sufficient power to move heavy loads. The LTM 1070 4.2 has a total of 4 axles and offers standard drive/steering options of 8 x 4 x 8. If required, the drive/steering can be extended to 8 x 6 x 8 to improve manoeuvrability in various terrain conditions.

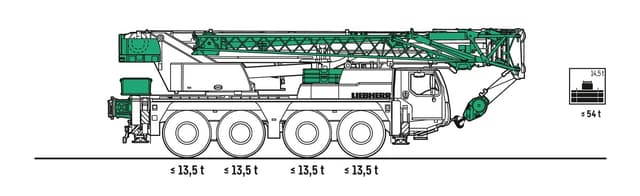

With an impressive travel speed of 85.00 km/h, the LTM 1070 4.2 can get to different job sites quickly. To ensure a stable working environment, the total ballast of the crane is 14.50 tons.

The Liebherr LTM 1070 4.2 is a reliable mobile crane that can handle a wide range of lifting tasks with its lifting capacity, solid outreach and flexible configuration options. It is a valuable machine in the construction industry as well as in other industries where heavy loads have to be lifted.

max width


min width


max height


transportation height


max length


min length




lateral reach


lifting height

item designation

Mobile crane 70 tons




Product datasheet
