TB-401X | Genie SX-125XC

working height: 40.10 m
capacity: 454 kg
lateral reach: 24.38 m
platform height: 38.10 m
dimensions: 19.76 (13.28m) m x 2.49m (3.94m) x 3.05m
weight: 20700 kg
engine: Diesel
brand: Genie
model: SX-125XC
item designation: TB-401X

Add to quote!

Contact us if you have any questions or are interested in a rental offer.

Rental period approx.

Location

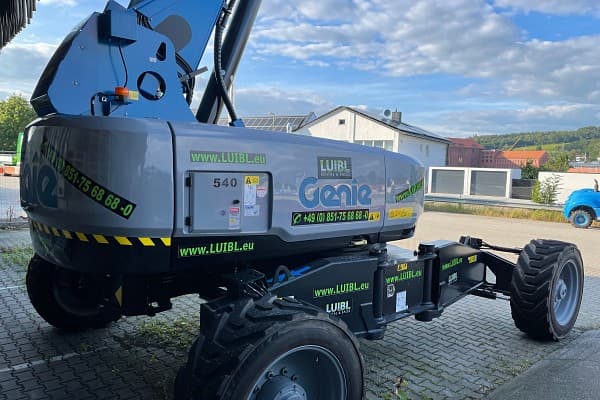

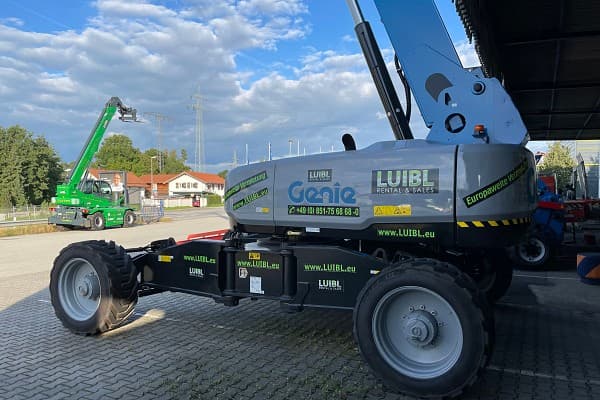

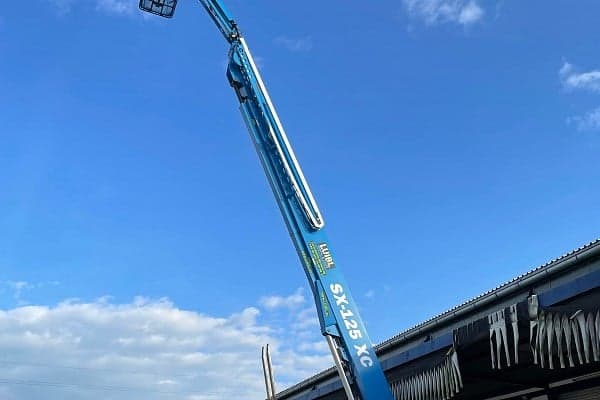

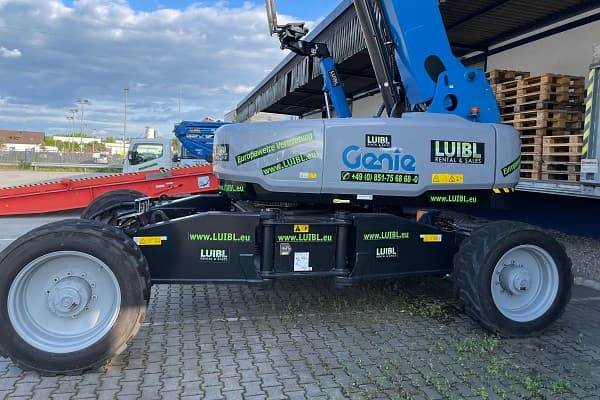

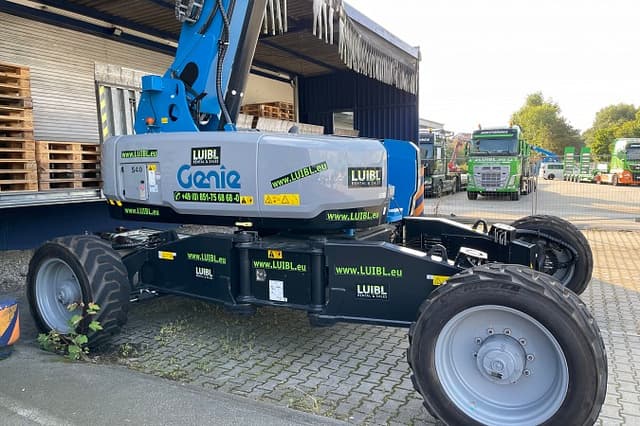

Telescopic boom lift 40m SX-125 XC

Due to its small design, the SX-125 XC telescopic platform is very flexible and versatile. The boom lift work platform is well suited for both indoor and outdoor use. The telescopic boom lift can score points with its load-bearing capacity despite its lightweight construction.

The maximum lifting height is 40m. The boom lift platform can withstand a weight of 300kg-454kg. The maximum capacity should not be exceeded, otherwise unintentional damage to the machine will occur. Hire an telescopic boom lift today.

Weight 21,526 kg
main group

model

platform length

2.44
subgroup

max platform depth

0.91
min platform depth

0.91
platform length extended

2.44
max width

3.94
min width

2.49
side

min length

13.28
max height

3.05
max length

19.76
transportation height

3.05
brand

engine

working height

platform height

capacity

lateral reach

platform size

dimensions

weight

item designation

TB-401X

Product datasheet

genie_sx_125xc
Hire the 40 metre high telescopic platform from Genie

The articulated platform has a cage boom height of 1.52 metres. The special feature of our SX-125 XC is its two load capacity zones of 300kg, which is unrestricted, while the 454kg is restricted. This high load capacity is very practical when larger loads need to be transported upwards. The articulated platform can hold up to three people.

A reach of 2.69 metres below ground level is also available. The articulated telescopic platform also has automatic work area monitoring and a chassis tilt sensor for smooth operation. On-site zero-load calibration and an integrated diagnostic system for better service are also included in the SX-125 XC. This telescopic platform is diesel-powered, but can handle even the most difficult tasks. Save time now and hire a telescopic platform from us. The articulated work platform is available in the colour blue.

Rent a telescopic platform now and save time

Are you interested in the SX-125 XC from Genie? Then contact us by phone and let us create a customised offer for you. Use the excellent articulated platforms from Genie for your projects and make your work easier. Get in touch with our rental team now!
